Universal TITAN Battery Cartridge Gun PPG21B-CORE: for cartridges and sausage packs.
With the Titan Cartridge Gun PPG21B-CORE, you can work with both cartridges and sausage packs. Thanks to the fine adjustment option, application is precise, clean, and without stains. Regardless of the material and the individual properties of the sealant, you can rely on high work quality. With the speed control, you can select the optimal operating mode for each task. The automatic reverse movement of the plunger when the device is turned off prevents contamination. The LED lighting integrated into the handle perfectly illuminates the work area. The gearbox is made of high-quality steel to ensure a long operating time. With a high pressing force of 6500N (662Kg), the use of the entire material down to the last drop is ensured.
The delivery of the Titan Cartridge Gun PPG21B-CORE includes two durable 2.5 AH Titan batteries and a matching Titan charger.
I. Titan Battery Cartridge Gun PPG21B-CORE
Advantages:
- for sausage packs and cartridges
- Maximum pressing force 6500 N / 662 Kg
- No leaking or dripping
- Suitable for viscous adhesives
- Practical LED on the handle
- Up to 300 ml cartridges
- Suitable for 400, 500, and 600 ml sausage packs
- Compatible with 21V batteries
- 2 Titan 2.5 AH batteries and a Titan charger included
Further product information:
- Material: Plastic, Steel
- Battery voltage: 21 V
- No-load speed: 0-9.6 mm/s (6 adjustable levels)
- Weight: 1.9 kg
- Dimensions: 55 x 6 x 25 cm (LxWxH)
II. 2.5 AH TITAN Lithium-Ion Battery PBL2130-CORE Hi-EE
Titan Lithium-Ion Battery 2.5 Ah for Titan Polishing Machine and Cartridge Gun.
Technical data:
- max.21V
- 2.5 Ah
- Electronic smart control
- Temperature control
- Weight: 0.36kg
III. TITAN Fast Charger TITAN PQC2117
Suitable for all TITAN Lithium-Ion batteries.
Technical data:
- Input: 100-240V ~ 50-60Hz 150W
- Output: 14.4V-21V, MAX DC 6.5 A
- compatible with: all TITAN Lithium-Ion batteries
- Operating temperature: 5-40°C

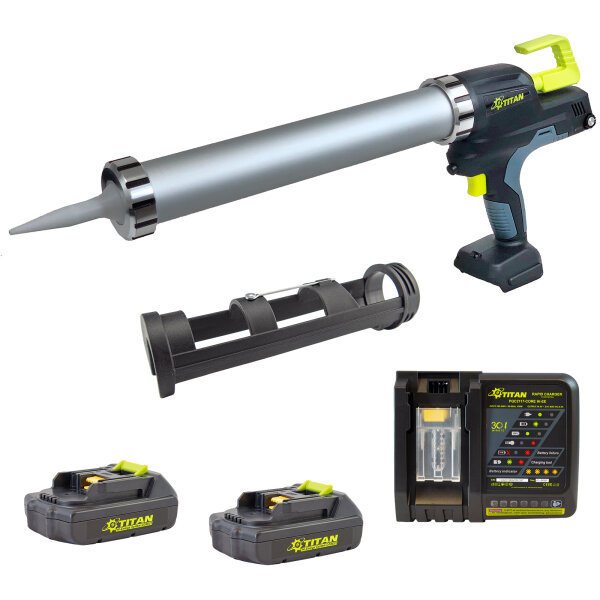

Scope of delivery:
- 1 x Titan Battery Cartridge Gun PPG21B-CORE
- 1 x Accessories (locking key, spray nozzle, plunger for use with plastic cartridges)
- 2 x 2.5 AH TITAN Lithium-Ion Battery
- 1 x Fast Charger TITAN PQC2117
- 1 x Manual
Product safety information
Manufacturer information:
Titan
Plauerhaeger Str. 26
Mecklenburg-Vorpommern
Plau am See, Deutschland, 19395
support@ipa-gmbh.com
| Item information |
Value |
| Brand: |
Titan |
| Item weight: |
4,52 kg
|
| Dimensions
( Length × Width × Height ):
|
55,00 × 6,00 × 25,00 cm |
- 1x Titan Battery Cartridge Gun PPG21B-CORE
- 1x Accessories (Locking Key, Nozzle, Piston for Use with Plastic Cartridges)
- 2 x 2.5 AH TITAN Lithium Ion Battery
- 1 x Fast Charger TITAN PQC2117
- 1x Manual
